Product

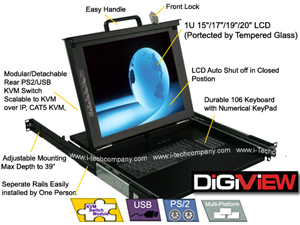

Highlights:
Easy Handle
Front Lock
Adjustable Mounting Max to 39"
LCD Auto Shut off in closed position
Durable 106 Keyboard with Numerical KeyPad
Protected by Tampered Glass
|
1U
Rackmount 17" LCD Drawer with Keyboard Drawer w/ 8-ports Combo
USB/PS2 KVM Drawers (D-sub 15)w/ Touch-Pad
Keyboard
The DigiVeiw 1U Rackmount
15”/17”/19”/20” LCD Combo PS2-USB 8/16-port KVM and 8/16/32 CAT5 KVM
switch can control attaching servers and computers from local or
remote console.
This KVM switch is loaded with Optional
features such as one local console port, plus one optional
CAT5-based remote two console port or one optional IP-based remote
console Port. On Screen Display (OSD) Menu, Password security, Hot
key Control, Push Button and Auto Scan Control. It has complete
keyboard and mouse emulation for simultaneous PCs boot-up process.
Special
Modular/Scalable KVM Design
DigiView Special
Modular/Scalable KVM, allow user to use DigiView console as single
port console, or upgrade the Rear detachable KVM module to be 8/16
ports Combo PS2-USB, or 8/16/32 ports CAT5 KVM consoles with 2
Consoles via CAT5 extenders or KVM over IP.
Easy to maintain: Once the defective comes from the KVM switch,
you can just swap the KVM switch module without sending the whole
console back for repair.
Ready to Grow: With our fully modulized detachable rear Combo and
CAT5 KVM module, plus IP & CAT5 modules. You have the
flexibility to create 12 models of KVM and connect servers up 256
Servers. DigiView is scalable to grow with your networking needs.
  Features:
- LCD Size: 15”/17”/19”/20” in 1U Rack Space
- Separate Rail Design, easy to installed by
one person
- LCD Auto Shut off in closed Position
- Front lock with extra security
- Bright Active TFT display
- Panel protected by tempered glass
- Lockable sliding drawer to prevent movement
when typing and slide out from the rack.
- Support Sun native resolution (+14 SUN Keys
for SDK series)
- OSD function for LCD display and KVM switch
- Durable TouchPad keyboard (Optional Cherry
keyboard with trackball)
- Special Modular/Scalable KVM Design with
more than 10 models of KVM switches
- Easy to maintain : Once the defective comes
from the KVM switch, you can just swap the KVM switch module
without sending back the whole unit.
- DC power, DVI (optional)
- Touch panel and Sun keys (optional)
- Support 17 various keyboard languages (Optional)
|
